Second-source supply
Compare requirements by equipment platform, part number and revision before assessing specifications and supply feasibility.
SECOND SOURCE & REPAIR
AMAT & LAM
Key Components
Explore second-source components, repair assessment and development support. From ESC power boards and magnet drivers to high-voltage and fibre-optic modules, we start with the part number, revision and application.
AMATP5000 / Centura
LAMKiyo 300mm
Component repair
Start with the fault symptoms and component condition. Repair feasibility and the appropriate approach are assessed case by case.
Development support
For unlisted parts, share samples, drawings or specifications. We help define the requirement, identify sources and coordinate the next validation steps.
COMPONENT CATALOGUE
Products & service scope
Search by part number, platform or product family. This is a reference catalogue, not a live stock list. Revision compatibility, supply arrangements and repair feasibility require individual confirmation.
AMAT
LAM
Available List
29 part numbersAMAT and LAM reference part numbers. Availability, compatibility and repair scope must be confirmed. Select “View product” to see an illustrated item below.
Swipe horizontally to view all columns.
| Brand | Part number | Description | Reference platform | Product / enquiry |
|---|---|---|---|---|
| AMAT | 0100-01133 | EMAX Magnet Current Sense CardEMAX Magnet Current Sense Card | P5000 / Centura | |
| AMAT | 0190-02703 | Magnet Drive ASSY 01Supply and service scope to be confirmed | Centura 300mm | |
| AMAT | 0190-70060 | Magnet Driver AssemblyMagnet Driver ASSY | MXP / MXP+ / SUPER-E / EMAX / P5000 / Centura | |
| AMAT | 0010-10551 | P5000 Endpoint ModuleSupply and service scope to be confirmed | P5000 200mm / 150mm | |

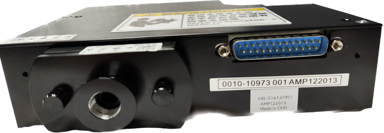

| AMAT | 0010-10973 | Hot Pack ModuleHot Pack | P5000 / Centura | |
| AMAT | 0010-36543 | Centura Endpoint ModuleSupply and service scope to be confirmed | Centura 200mm | |
| AMAT | 0100-09172 | 8-channel Endpoint PCB Card8 Channel Emission Laser Endpoint PCB Card | P5000 / Centura | |
| AMAT | 0900-01063 | 387 nm UV Bandpass FilterFLTR BANDPASS UV 387NM-CTR | P5000 / Centura | |
| AMAT | 0900-01064 | 484 nm Visible Bandpass FilterFLTR BANDPASS VISIBLE 484NM-CTR 2NM-HW | P5000 / Centura | |
| AMAT | 0010-04926 | SuperE HV ModuleSupply and service scope to be confirmed | Centura 200mm | |
| AMAT | 0010-09933 | MXP HV ModuleSupply and service scope to be confirmed | P5000 200mm / 150mm | |
| AMAT | 0010-10901 | RF Box High-voltage ModuleHV MODULE ASSY, RF BOXGECO | P5000 / Centura | |
| AMAT | 0010-11239 | 5 kV CESC High-voltage ModuleHV MODULE 5KV, ASSY, 200MM CESC | Centura | |
| AMAT | 0010-12553 | Emax HV ModuleSupply and service scope to be confirmed | Centura 200mm | |
| AMAT | 0010-16690 | HV Module ASSY, CESCSupply and service scope to be confirmed | Centura 300mm | |
| AMAT | 0190-09134 | 8.5 ft Fibre-optic CableFiber Optic Cable, 8.5FT | P5000 / Centura | |
| AMAT | 0190-09455 | Centura EDP FiberSupply and service scope to be confirmed | Centura 200mm | |
| AMAT | 0190-09459 | 20 ft Fibre-optic CableFiber Optic Cable 20FT | P5000 / Centura | |
| AMAT | 1120-01071 | 25 ft Bifurcated Fibre-optic CableFiber Optic Cable BIFURCATE, 25’L | P5000 / Centura | |
| LAM | 810-107813-117 | ESC Power Supply BoardPCBA, ESC PWR SPLY | Kiyo 300mm | |
| LAM | 810-107813-306 | ESC HVBP Power Supply BoardPCBA, PWR SPLY, ESC, HVBP | Kiyo 300mm | |
| LAM | 810-495659-006 | ESC BICEP II Power Supply BoardASSY, PCB, PWR SPLY, ESC, BICEP II | Kiyo 300mm | |
| LAM | 810-495659-304 | ESC BICEP Q Power Supply BoardASSY, PCB, PWR SPLY, ESC, BICEP Q | Kiyo 300mm | |
| LAM | 810-495659-307 | ESC BICEP II Power Supply BoardASSY, PCB, PWR SPLY, ESC, BICEP II | Kiyo 300mm | |
| LAM | 810-495659-308 | ESC BICEP II Power Supply BoardASSY, PCB, PWR SPLY, ESC, BICEP II | Kiyo 300mm | |
| LAM | 810-495659-410 | ESC BICEP High-voltage Power Supply BoardPCBA, PWR SPLY, ESC, BICEP, HV-RP | Kiyo 300mm | |
| LAM | 810-495659-431 | ESC BICEP 2 kV Power Supply BoardPCBA, PWR SPLY, ESC, BICEP, 2KV-RP, IS | Kiyo 300mm | |
| LAM | 810-495659-531 | ESC BICEP 2 kV Power Supply BoardPCBA, PWR SPLY, ESC, BICEP, 2KV-RP.IS | Kiyo 300mm | |
| LAM | 810-A13289-001 | ESC Power Maintenance Adaptor BoardPCBA, MAINTENANCE ADAPTOR, ESC PWR | Kiyo 300mm |
21 illustrated products + 8 additional part numbersSelect an image to view the original
LAM · Kiyo 300mm
810-107813-306
ESC HVBP Power Supply Board
PCBA, PWR SPLY, ESC, HVBP
Enquire about this part
LAM · Kiyo 300mm
810-495659-006
ESC BICEP II Power Supply Board
ASSY, PCB, PWR SPLY, ESC, BICEP II
Enquire about this part
LAM · Kiyo 300mm
810-495659-304
ESC BICEP Q Power Supply Board
ASSY, PCB, PWR SPLY, ESC, BICEP Q
Enquire about this part
LAM · Kiyo 300mm
810-495659-307
ESC BICEP II Power Supply Board
ASSY, PCB, PWR SPLY, ESC, BICEP II
Enquire about this part
LAM · Kiyo 300mm
810-495659-308
ESC BICEP II Power Supply Board
ASSY, PCB, PWR SPLY, ESC, BICEP II
Enquire about this part
LAM · Kiyo 300mm
810-495659-410
ESC BICEP High-voltage Power Supply Board
PCBA, PWR SPLY, ESC, BICEP, HV-RP
Enquire about this part
LAM · Kiyo 300mm
810-495659-431
ESC BICEP 2 kV Power Supply Board
PCBA, PWR SPLY, ESC, BICEP, 2KV-RP, IS
Enquire about this part
LAM · Kiyo 300mm
810-495659-531
ESC BICEP 2 kV Power Supply Board
PCBA, PWR SPLY, ESC, BICEP, 2KV-RP.IS
Enquire about this part
LAM · Kiyo 300mm
810-A13289-001
ESC Power Maintenance Adaptor Board
PCBA, MAINTENANCE ADAPTOR, ESC PWR
Enquire about this part
AMAT · MXP / MXP+ / SUPER-E / EMAX / P5000 / Centura
0190-70060
Magnet Driver Assembly
Magnet Driver ASSY
Enquire about this part

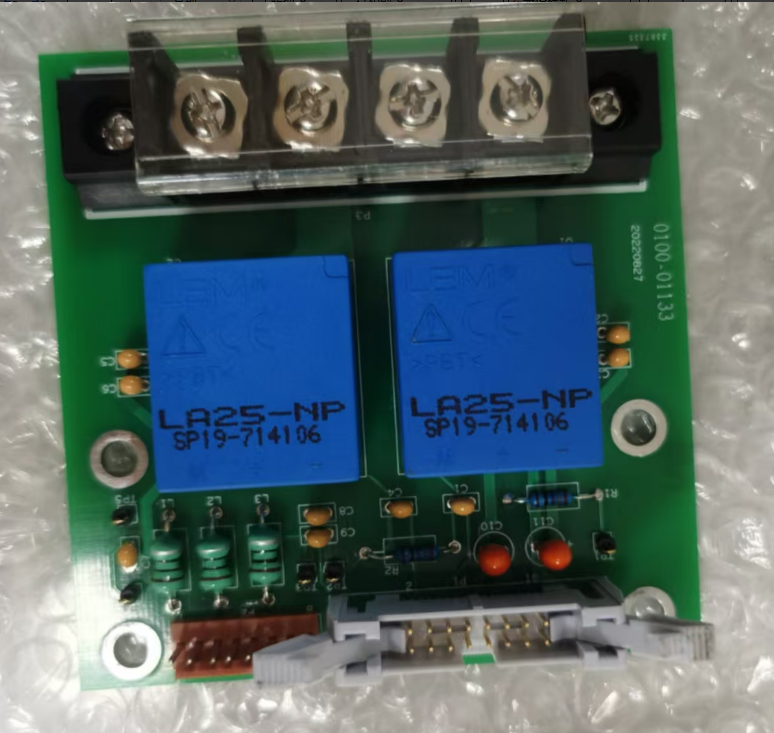

AMAT · P5000 / Centura
0100-01133
EMAX Magnet Current Sense Card
EMAX Magnet Current Sense Card
Enquire about this part

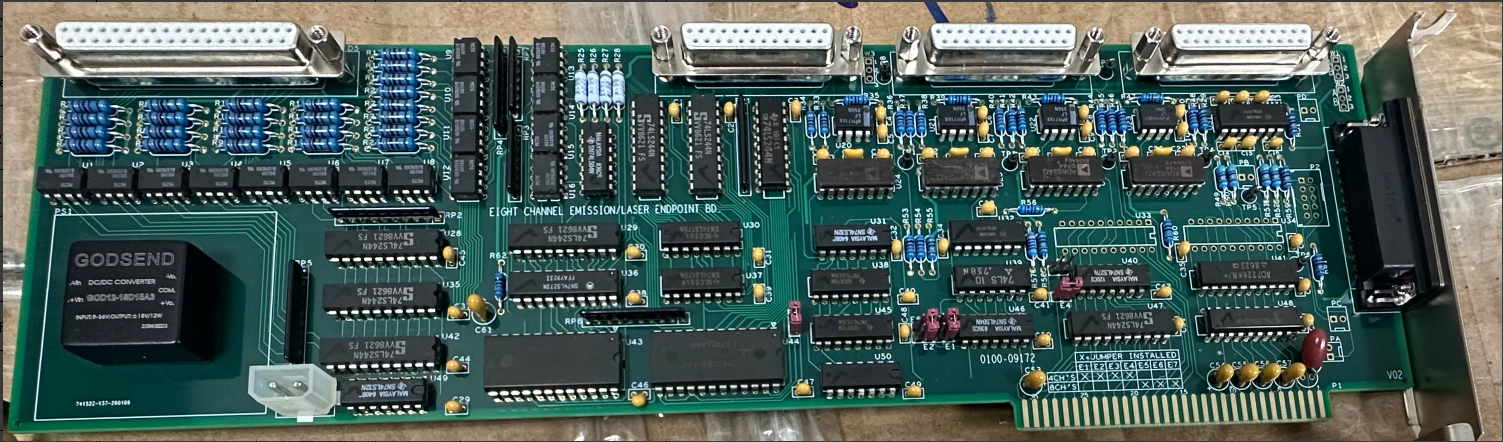

AMAT · P5000 / Centura
0100-09172
8-channel Endpoint PCB Card
8 Channel Emission Laser Endpoint PCB Card
Enquire about this part

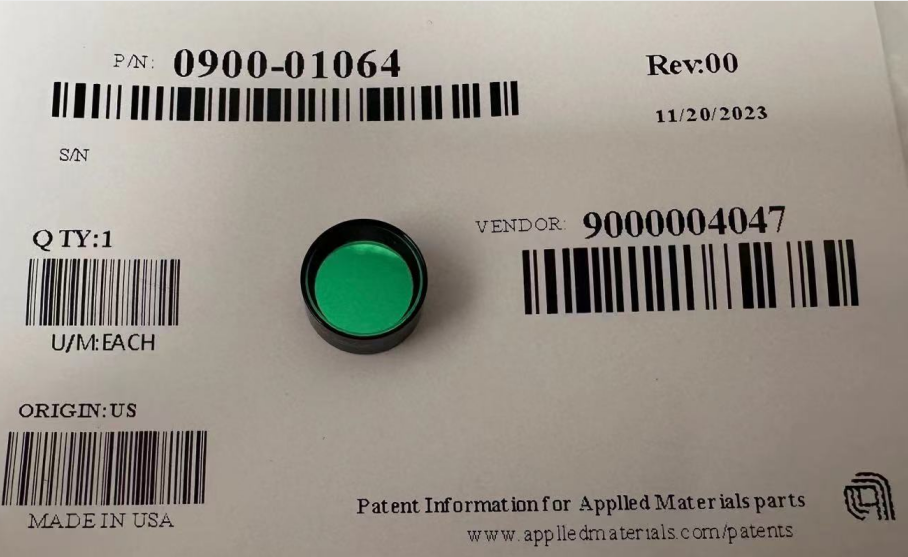

AMAT · P5000 / Centura
0900-01064
484 nm Visible Bandpass Filter
FLTR BANDPASS VISIBLE 484NM-CTR 2NM-HW
Enquire about this part

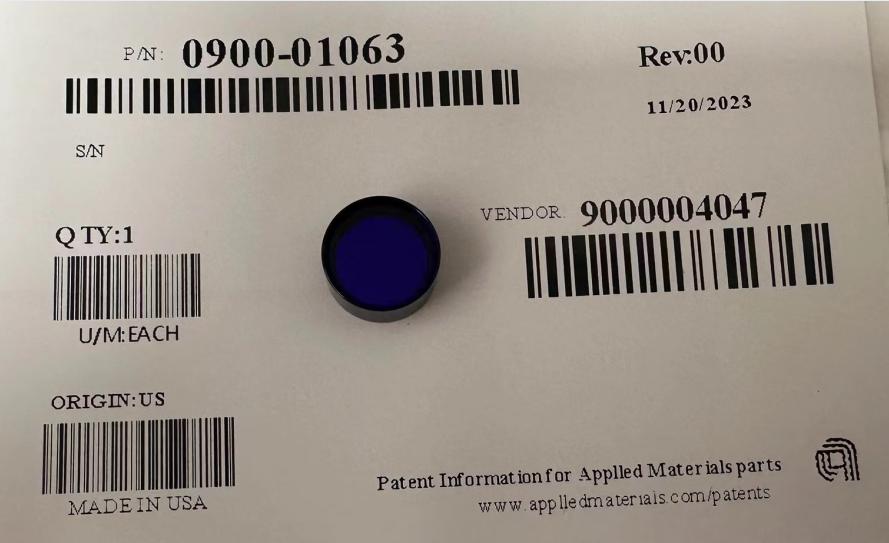

AMAT · P5000 / Centura
0900-01063
387 nm UV Bandpass Filter
FLTR BANDPASS UV 387NM-CTR
Enquire about this part

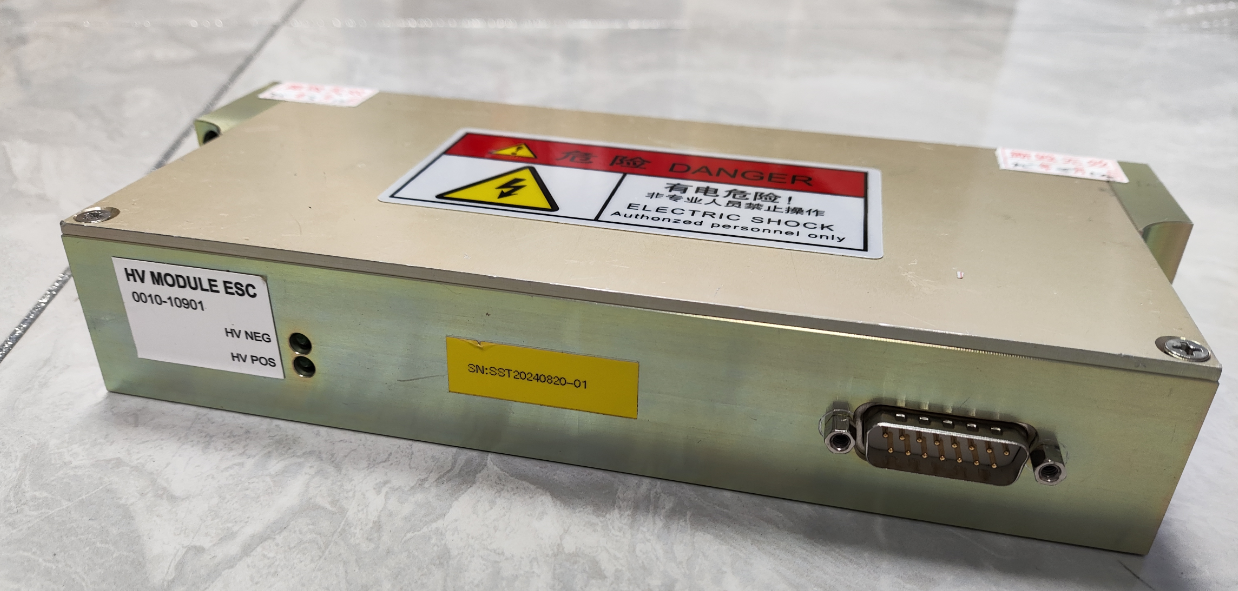

AMAT · P5000 / Centura
0010-10901
RF Box High-voltage Module
HV MODULE ASSY, RF BOXGECO
Enquire about this part

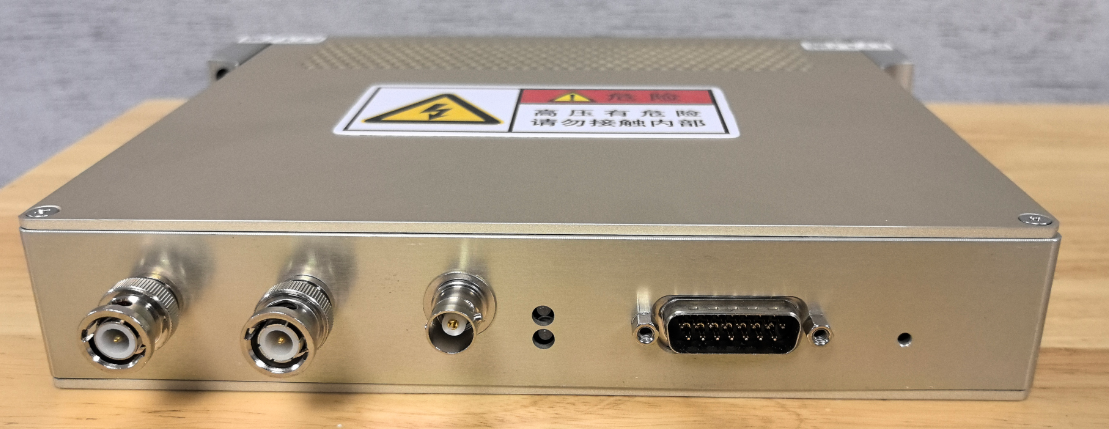

AMAT · Centura
0010-11239
5 kV CESC High-voltage Module
HV MODULE 5KV, ASSY, 200MM CESC
Enquire about this part

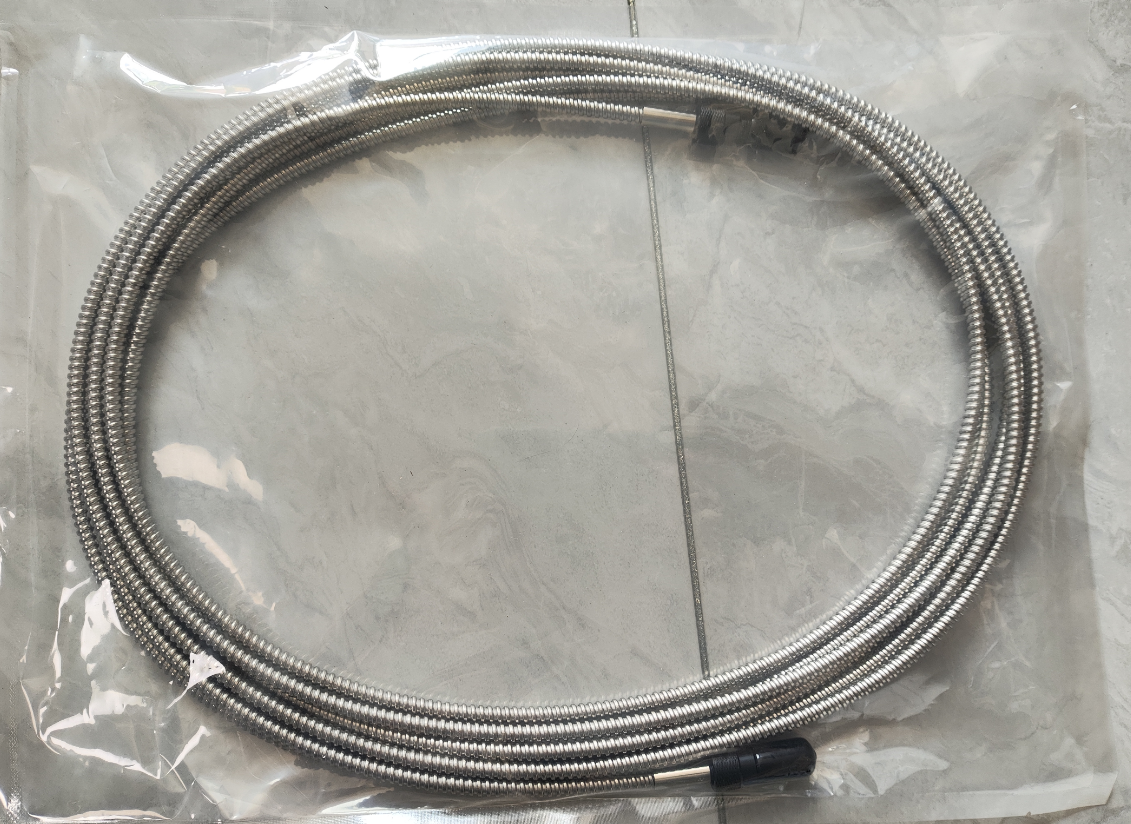

AMAT · P5000 / Centura
0190-09459
20 ft Fibre-optic Cable
Fiber Optic Cable 20FT
Enquire about this part

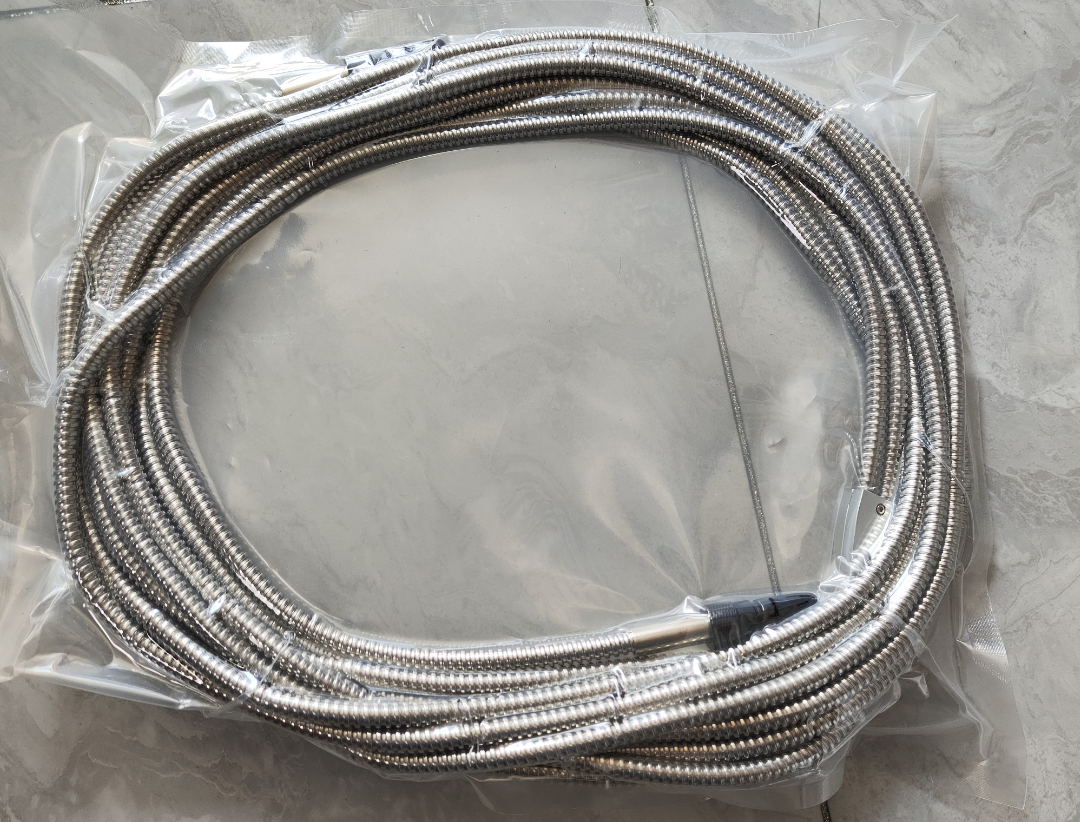

AMAT · P5000 / Centura
1120-01071
25 ft Bifurcated Fibre-optic Cable
Fiber Optic Cable BIFURCATE, 25’L
Enquire about this part

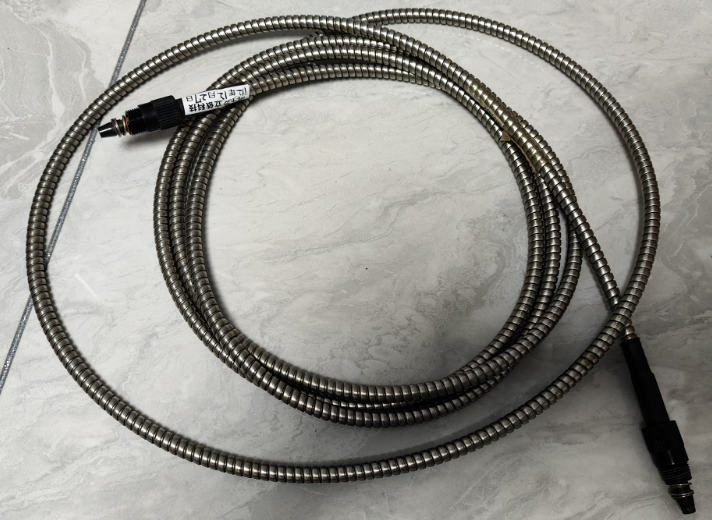

AMAT · P5000 / Centura
0190-09134
8.5 ft Fibre-optic Cable
Fiber Optic Cable, 8.5FT
Enquire about this partAdditional part numbers
Supply arrangements, revisions and service scope are subject to confirmation.
| Part number | Component | Reference platform | Enquiry |
|---|---|---|---|
| 0190-02703 | Magnet Drive ASSY 01 | AMAT Centura 300mm | Enquire ↗ |
| 0010-16690 | HV Module ASSY, CESC | AMAT Centura 300mm | Enquire ↗ |
| 0010-12553 | Emax HV Module | AMAT Centura 200mm | Enquire ↗ |
| 0010-04926 | SuperE HV Module | AMAT Centura 200mm | Enquire ↗ |
| 0010-36543 | Centura Endpoint Module | AMAT Centura 200mm | Enquire ↗ |
| 0190-09455 | Centura EDP Fiber | AMAT Centura 200mm | Enquire ↗ |
| 0010-09933 | MXP HV Module | AMAT P5000 200mm / 150mm | Enquire ↗ |
| 0010-10551 | P5000 Endpoint Module | AMAT P5000 200mm / 150mm | Enquire ↗ |
Images are for identification and requirement discussions. Actual appearance and specifications depend on the confirmed revision. AMAT, LAM and associated part numbers identify equipment and components only; they do not imply OEM authorisation, certification or partnership.
CUSTOM DEVELOPMENT
A part number, a sample, or a problem to solve?
You do not need a complete specification to start. Share what you know so we can discuss sourcing, repair or development options.
Discuss my requirementUseful details to share
- Equipment: brand, platform and application
- Component: P/N, revision, photos or nameplate
- Requirement: alternative supply, repair or development
- Conditions: fault symptoms, quantity and target schedule
